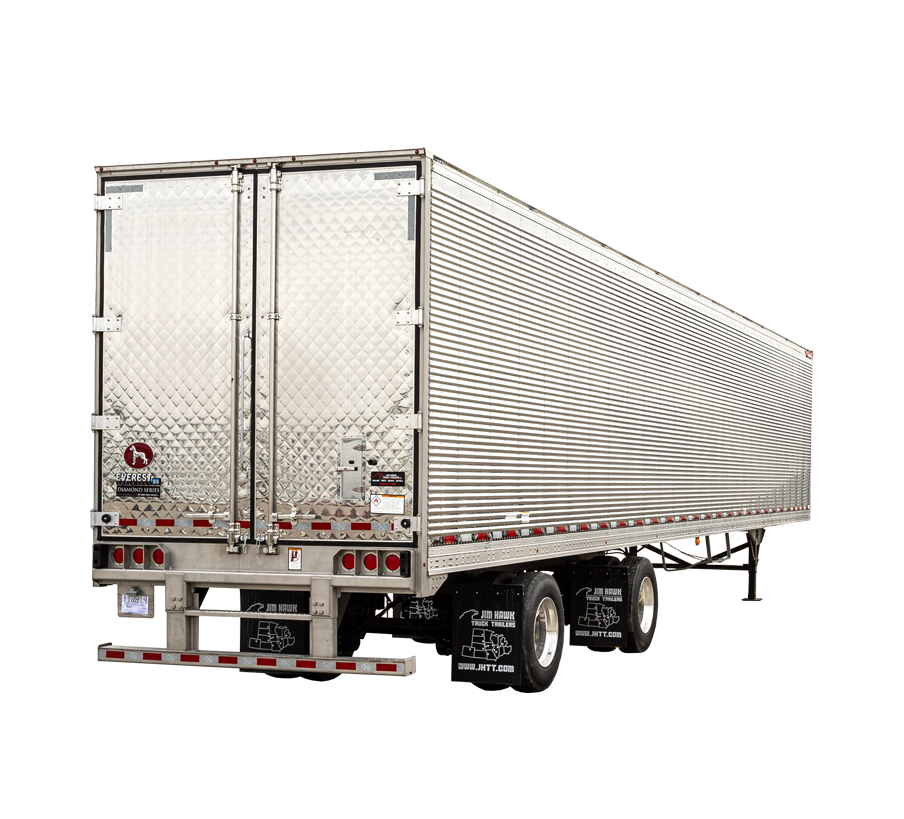

The Great Dane DIAMOND SERIES refrigerated trailer is specifically designed for refrigerated carriers who demand the best that money can buy. The DIAMOND features stunning appearance along with unprecedented quality and outstanding value. And, it is THE highest-performing, most thermally efficient trailer available because it is built using the highest-quality components and technology available. If you’re seeking the greatest return on your investment with performance that shines, look no further!

The Great Dane DIAMOND SERIES comes equipped with the following features:

• Full stainless-steel construction to provide unmatched durability and style
• Stainless Steel ICC bumper, landing gear wing plates, diamond pattern rear doors and lock rods
• 53” x 102” x 13’6” with 24” kingpin
• (9) LED lights on top and bottom rail along with (3) buck plate lights on each side
• Unprecedented 10-year warranty on the lighting system
• Hendrickson sliding spread axle suspension
• (8) Aluminum wheels
• Hendrickson Tiremaxx CP tire inflation system
• Mudflaps mounted behind both axles for maximum protection
• ThermoGuard interior lining for ultimate sidewall protection and insulation performance
• Long Life floor system with heavy duty aluminum duct floor
• (3) Interior dome lights with front and rear switches

The Great Dane DIAMOND SERIES, exclusively offered by Jim Hawk Truck Trailers. The highest performing, most thermally efficient trailer available.

Product

Product

ESS - Everest Super Seal Reefer

Manufacturing

Plant Wayne, NE

Model Year

2020

Geometric Dimensions

Packaged Options

None

Serial Plate

U.S.Certification Plate

Overall Height

13' 6"

Overall Length

53' 0"

Overall Width

102.36"

Upper Coupler Height

48"

Kingpin Location

24.00"

Landing Gear Location

105.0'' From Kingpin

Wedge

No Wedge

Undercarriage Design

Tandem Axle, Slide Air-Ride Suspension, 121" Axle Centers

Miscellaneous Text (TABA)

None

Front

Front Corner

6" Extruded Aluminum Radius

Front Corner Sheet

Stainless Steel 0.021"

Front Sheets

Stainless Steel, 0.035''

Front Upright

Zee, Aluminum, 1.63"

Front Vents

None

Quantity and Type of Front Vent

None

Vent Screens

None

Location of Front Vent

None

Telematics / Tracking System

None

Electrical Connector and GladhandLocation

Offset Roadside, Overlaid

Hose Couplers (Gladhands)

Great Dane Control and Supply with Urethane Seals

In-Line Air Filter

None

Document Holder

Great Dane Standard with Logo At Roadside Front

Additional Manifest Box

None

Additional Manifest Box Location

None

Miscellaneous Text (TABB)

None
